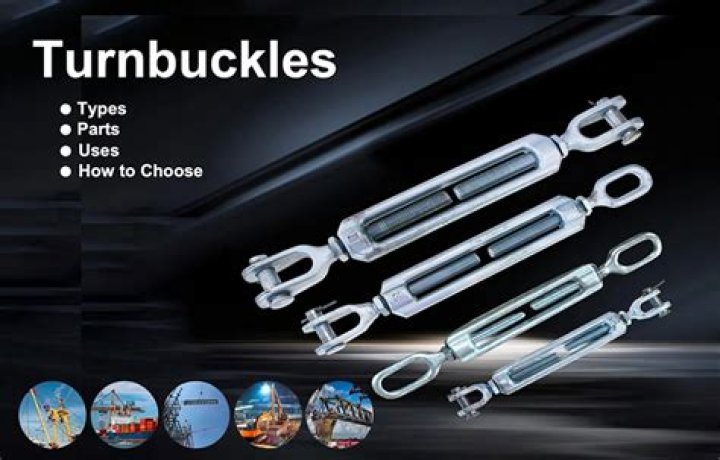

Turnbuckle types are, essentially, named for the combination of end fittings used in the device. The most common end fitting combinations are: Jaw and jaw. Eye and jaw.

What is the purpose of a turnbuckle?

A turnbuckle is a mechanical device used to adjust the tension in ropes, cables, tie rods and other tensioning systems. It is also known as a stretching screw or a bottle screw.

What is a turnbuckle device?

turnbuckle, mechanical device that connects the threaded ends of two rods and permits them to be adjusted for length or tension. The turnbuckle has two collinear holes, one of which has right-hand threads and the other left-hand threads that mate with the right- and left-hand threads on the ends of the rods.

Are turnbuckles strong?

Our stainless turnbuckles come in both drop forged or formed and welded varieties. The formed and welded turnbuckles are nearly as strong as the drop forged turnbuckles, and offer significant cost savings. … They are not as corrosion resistant as stainless steel.

What is a turnbuckle in WWE?

Unlike a boxing ring, the ring ropes in a wrestling ring are not tethered together. These ropes are held up and tensioned by turnbuckles, which, in turn, hang on steel ring posts, which also support the frame. … All parts of the ring are often used as part of various offensive and defensive moves.

Can you use a turnbuckle for lifting?

A turnbuckle can be adjusted when under load to pull two items together or to tension / loosen. … They can also be used to take slack out a system if there is any movement or stretch over time.

What does a turnbuckle look like?

A turnbuckle, stretching screw or bottlescrew is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread.

Do turnbuckles have opposite threads?

A turnbuckle, also known as a bottlescrew, is a device consisting of two threaded eye bolts with opposite handed threads that are screwed into each end of a frame. … The tapped holes at each end of the frame must also have opposite handed threads to accept the bolts.

What size is M4 turnbuckle?

Stainless Steel 316 M4 (5/32″) 4mm Turnbuckle Eye & Eye Marine.

What can I use instead of a turnbuckle?

The alternative to turnbuckles are deadeyes. Deadeyes use lashings to form a block and tackle setup at the bottom of the stay to achieve the necessary tension needed to tune the rigging. Deadeyes consume 4 feet of dyneema, making them rather economical by comparison.

Article first time published on

How do I order a turnbuckle?

Use a straight ruler to measure the length of the inside of the take-up. The take-up is what is turned to loosen or tighten the turnbuckle. The inside of the take-up is the rectangle inside the frame through which the threaded rods can be seen. Measure end to end of the inside of the frame.

How much weight can a turnbuckle hold?

The turnbuckle has a working load rating of 1200 lbs.

What are lashing bars?

Lashing bars are devices used in combination with turn buckles, to tension a ship’s container lashing. The swivel head is made to fit into the end of the container corner casting. The other end is attached to the appropriate turnbuckle for the specific container.

What is a hook and eye turnbuckle?

A turnbuckle is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. … The tension can be adjusted by rotating the frame, which causes both eye bolts to be screwed in or out simultaneously, without twisting the eye bolts or attached cables.

Why do wrestlers grab the string?

The purpose of the rope is to prevent blatant double-teaming and interference from the illegal partner, as well as to prevent the illegal partner from walking halfway down the ring apron to make the tag.

How tall are WWE ropes?

Professional Wrestling Rings have a length and width inside the ropes of 20′ (6.1 m) for a total area of 400 ft² (37.2 m²). The ring has an outer apron of 1′ (30.5 cm) and mat height of 40” (101.6 cm). The height of the top rope of a Pro Wrestling Ring is 8′ (243.8 cm) and the ropes are spaced 18″ (45.7 cm) apart.

Is a WWE ring soft?

The wrestling ring is made of an extremely tight foam cover. This thin foam pad is the top layer of the ring mat and below this is a 1” piece of plywood. Then comes the most important part of the ring: the springs.

What sizes do turnbuckles come in?

Common sizes available are 6”, 9”,12”, 18” and sometimes 24” take ups.

What size turnbuckle should I use?

Turnbuckle Size (inches)Wire Rope Size (inches)6 x 7 Improved Plow Steel I.W.R.C. (M.B.S.)Jaws or Eyes3/162,9005/161/45,1003/85/167,9201/2

How do you tighten a zip line on a turnbuckle?

The main cable line typically has a swage end, or you can create a loop with cable clamps shown above with a cable thimble. The other side of your turnbuckle will attach to your cable sling that is wrapped around your end anchor. Tighten the turnbuckle by twisting it with a wrench, your hand or a screwdriver.

What is the most common misuse of rigging?

With rigging hardware, what we’re talking about is items like hooks, links, shackles, turnbuckles, eye bolts, and hoist rings. The most common problems tie back to misuse and abuse and lack of inspection. Some of the most common issues we see are: Hooks with missing or broken latches.

How can you tell the difference between left hand thread and right hand thread on turnbuckle?

Hold the stud straight up and look for the direction of the thread’s slope. The left-hand thread will slope up to the left and a right-hand thread will slope up to the right. A right-hand threaded stud will tighten as you turn it clockwise into a turnbuckle (Righty-Tighty!), just like a light bulb.

What is the maximum thread exposure of a turnbuckle barrel?

After safety, no more than 3 threads of the turnbuckle terminal should be exposed.

What are left hand threads?

Left-handed threads are also known as reverse threads. These threads are used in specialized applications in which the application of pressure would force a right-handed screw or bolt to come loose.

What is unique about the thread of a turnbuckle barrel?

A typical turnbuckle assembly consists of a brass barrel and two steel ends. The two steel ends have different threads—one left hand and one right hand—to allow tightening and loosening.

Do turnbuckles work in compression?

Admittedly, the turnbuckles are rated for 6000 lbf each and the valve only weighs 500. However, everything I know about turnbuckles tells me that rating is for when the turnbuckle is in TENSION, not compression. There’s just not enough material in the body of the turnbuckle to keep it from buckling.

What is a rigging screw?

Definition of rigging screw 1 : a screw clamp or vise for bending rope around a thimble for splicing or seizing. 2 British : turnbuckle.

What is a turnbuckle cast?

Turnbuckle cast: this device is used to immobilize the entire trunk, one upper arm to the elbow, and the upper legs to the knee.

What is the safety factor for turnbuckles?

Turnbuckles are manufactured to meet the performance ASTM F1145-92 formerly U.S. Fed. Spec. FF-T-791 and have a safety factor of 5 to 1. The turnbuckles are drop forged.
