Commercial thermocouples are interchangeable, economical, and supplied with standard connectors. Unlike most other temperature measurement devices, external form of excitation is not required for thermocouples because they are self-powered.

What size thermocouple do I need for water heater?

Universal thermocouples come in lengths from 15 to 36 inches. An 18 or 24 inch will suffice for all residential water heaters using universal kits. Almost all older waters heaters and many of the newer style units with a sealed burner compartment and a viewing window will use this thermocouple.

Are thermocouples universal?

Honeywell, White Rodgers, and other manufacturers make universal replacement thermocouples, usually with a 30-millivolts (mV) rating for standing-pilot furnaces. … Electronic flame sensors are much less universal, and you must find the exact part specified for your furnace model.

How do I choose the right thermocouple?

1. Determine the application where you will use the thermocouple sensor. …
2. Determine the temperature ranges the probe will be exposed to. …
3. Determine how important a fast response time is. …
4. Consider any chemical, abrasion or vibration resistance. …
5. Consider any installation requirements.

Are there different types of thermocouples?

The American National Standards Institute (ANSI) and the ANSI-accredited American Society for Testing and Materials (ASTM) lists nine main thermocouple types: B, E, J, K, N, R, S, T, and C.

Are Thermopiles universal?

Product Overview It’s easy to install and designed for use with your gas- and propane-fueled appliances. It features a universal fit that can conveniently replace Honeywell, Robertshaw, Jade, and General Controls cartridges.

Are most thermocouples interchangeable?

Watch out: thermopiles and thermocouples are not interchangeable. When replacing a temperature sensing device like a thermocouple or thermopile, you should be sure to purchase the proper part.

Does the length of a thermocouple matter?

The length of a thermocouple has no effect on its measurement accuracy or its ability to transfer the signal to the instrument. In other words, thermocouples do not experience “voltage drops” or power loss along its length as a high current power line might possess.

Can you bypass a thermocouple on a water heater?

Realistically, you have just disabled the thermocouple, but you can also reach in and unclip it from its holding bracket where it meets the pilot light. In most cases it will be held on with a gravity clip, but some are held on with a screw that must be removed with a small screwdriver.

What is the best thermocouple type?

Type N – Nicrosil-Nisil: This thermocouple has very good thermoelectric stability, which is superior to other base metal thermocouples and has excellent resistance to high temperature oxidation. The Nicrosil-Nisil thermocouple is ideally suited for accurate measurements in air up to 1200°C.

Article first time published on

What is the most common thermocouple type?

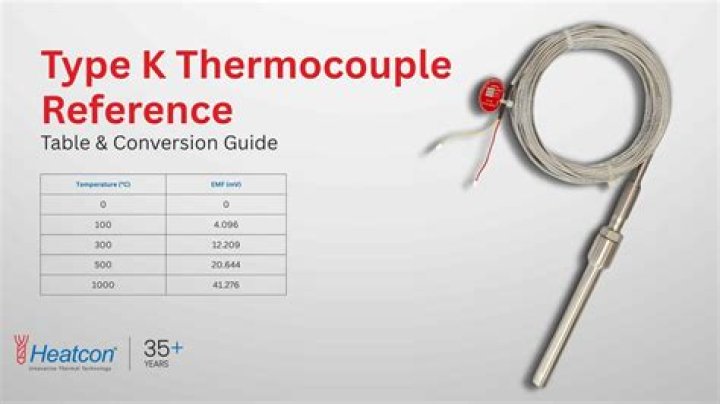

Type K Thermocouple (Nickel-Chromium / Nickel-Alumel): The type K is the most common type of thermocouple. It’s inexpensive, accurate, reliable, and has a wide temperature range.

How hard is it to change a thermocouple?

Thermocouples are designed to detect a pilot light’s loss of heat and close the gas valve to prevent a gas leak. Replacing a thermocouple is a relatively easy fix that can take less than two hours.

How much is a new thermocouple?

It costs $150 to $250 to replace a thermocouple. It checks to make sure the pilot light is on. It will shut the gas off if it’s not.

Are J and K thermocouples interchangeable?

Types of Thermocouple. Type J Thermocouple: The type J is also very common. It has a smaller temperature range and a shorter lifespan at higher temperatures than the Type K. It is equivalent to the Type K in terms of expense and reliability.

Are all K type thermocouples the same?

All Thermocouple types work on the same basis, they consist of two wire legs made from dissimilar metals (Nickel-Chromium / Nickel-Alumel in type K) which are fixed together at one end, creating a junction (Fig 1.).

How can you tell the difference between Type J and K thermocouples?

Whereas a J Type thermocouple is made up of iron and constantan, K type thermocouples are composed of a nickel/chromium alloy (chromel) and a nickel/aluminium alloy (alumel) which gives them much better protection against oxidation and acidity than the iron limbs of the Type J.

What are the symptoms of a bad thermocouple?

If you can’t get the flame to light at all, and you’re sure the gas is on, there’s probably an obstruction in the pilot tube. If the flame lights and goes out when you release the gas control knob after holding it in for the recommended 20 to 30 seconds, that’s the sign of a thermocouple malfunction.

Why do thermocouples go bad?

Soot buildup on the thermocouple may block the flame. Under constant exposure to a hot flame, a thermocouple wears down over time. Even a slight residue can make the thermocouple malfunction.

How do I know if my thermocouple is bad on my water heater?

A worn out thermocouple is one of the most common gas water heater problems. When thermocouples wear out, the pilot light goes out, the burner won’t light, and you will have no hot water.

What do thermocouples do?

Thermocouples are sensors used to measure temperature. … A thermocouple consists of two wires, or wire legs, made from different metals. The legs are welded together at one end, into a junction, where the temperature is measured. A voltage is created when the junction senses a change in temperature.

What does thermopile low voltage mean?

So, this is what the thermopile voltage low error means. The error means the thermocouples in the collection cannot generate enough current to power the control panel that we mentioned. If this happens, the controller system will stop working, and you will see an error message on the water heater.

How does a thermopile work?

Thermopile works on the thermoelectric effect principle. … A voltage is generated in a thermopile when its dissimilar metals (thermocouples) are exposed to temperature differences. Adding more pairs of thermocouples in series to form a thermopile, it increases the voltage output.

How do you bypass a bad thermocouple?

1. Move the tilts switch wire aside.
2. Remove your thermocouple from the heater using an 8mm wrench.
3. Pull the valve housing aside using your 13mm socket wrench. …
4. Remove the valve using your pliers. …
5. Put your thermocouple back into position.

Can you clean a thermocouple?

Yes, you can clean a thermocouple, but the task must be done with a light touch. Remove the thermocouple from the process assembly, using a steel wool or emery cloth, lightly clean the tip removing any build up.

Are there different sizes of thermocouples?

Standard diameters: 0.010″, 0.020″, 0.032″, 0.040″, 1/16″, 1/8″, 3/16″, and 1/4″ with two wires. Length: Standard OMEGA thermocouples have 12 inch immersion lengths. Other lengths available.

Can thermocouple wire be spliced?

YES. (However, tach and fuel flow wires can be extended with copper wire.) … If you add wire, be sure it is the same thermocouple wire and use zinc chloride solder such as “Nokorode” brand.

What happens if thermocouple is too long?

Thermocouple cannot have kinks, but copper can be rolled if thermocouple is too long. … The electromagnet holds open the safety valve as long as the pilot flame is heating the thermocouple. If the pilot light is out, the electromagnet closesa valve, and no gas can enter gas contrtol.

Do thermocouples need to be calibrated?

Thermocouples are a common type of temperature measurement device that is often more practical than a thermometer for temperature assessment. … As a result, thermocouples need to be calibrated to produce interpretable measurement information.

Can I replace a thermocouple myself?

The No. 1 cause of pilot lights that won’t stay lit is a worn-out thermocouple. It’s easy to replace and a new one costs $5 to $10. Rather than trying to unfasten the thermocouple inside the water heater’s burning chamber, it’s easier to remove the whole burner and thermocouple assembly.

Should thermocouple be in pilot flame?

The pilot flame should touch the thermocouple at a specific level. If the flame is blue and weak, and barely reaches the thermocouple, it needs to be stronger. If it extends well above the thermocouple, it’s too strong.

How much does it cost to replace a thermocouple on a water heater?

The cost to replace the thermocouple on a water heater is $100 to $325. The thermocouple detects whether the pilot light is lit and signals the gas control valve to turn on the gas flow. Thermocouple replacement is the most common repair needed for gas tank water heaters.
